Second proof of compactness for propositional logic


We give a second proof of the important compactness result, Theorem 8.1 of LMCS, using the visual aid of trees.

Binary trees

As background to the proof of the compactness theorem we want to introduce the reader to basic notions regarding trees. A tree is essentially an upside-down simplified representation of an ordinary tree, e.g.,

Some examples of trees.

The key ingredients of a tree are the nodes, indicated in the above figure by solid black circles, and the edges connecting them. The node at the top is called the root of the tree, and those connected by an edge are said to be adjacent. Every node which is not the root has exactly one adjacent node above it. A tree is binary if every node has at most two adjacent nodes below it. The above examples of trees are binary.

A branch  in a binary tree is a path starting at the root and proceeding downward along the edges of the tree, and not stopping unless it comes to a node with no adjacent nodes below it. We give two examples below, the first being a finite branch in a finite binary tree, the second is meant to indicate an infinite branch in an infinite binary tree.

Branches in a tree

The length of a branch is the number of edges in the branch, which is one less than the number of nodes in the branch. A branch is infinite if it has an infinite number of nodes in it. A tree has arbitrarily long branches if for every positive integer n there is a branch in the tree with length at least n. Clearly a tree with an infinite branch has arbitrarily long branches. In the preceding figure we note that the first binary tree is finite and does not have arbitrarily long branches; whereas the second binary tree is infinite, has arbitrarily long branches, and has infinite branches. The following special case of a famous theorem, called König's Lemma, guarantees an infinite branch for certain binary trees.

Proof. The idea is simply that if there are arbitrarily long branches passing through a given node a of a binary tree, then for some node a' adjacent to a and immediately below it one must have arbitrarily long branches passing through a'.

To see this consider the two cases, namely we have one node a1 or two nodes a1, a2 adjacent to and below a. In the first case clearly all the branches through a go through a1, and we are finished. In the second case, if we have no branches of length ni going though ai, then there are no branches of length n = max(n1, n2) going through a. But this contradicts our assumption that there are arbitrarily long branches through a.

We can start with the root r and repeatedly apply this observation to obtain an infinite branch .




Second proof of the compactness theorem

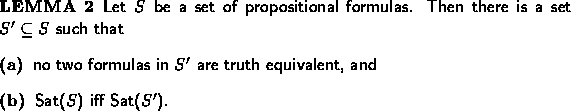

Now we want to apply this lemma to show that a set of propositional formulas is satisfiable iff every finite subset is satisfiable. First we need a technical lemma.

Proof

The truth equivalence relation partitions S into equivalence classes. Let S' be a subset of S obtained by choosing exactly one member from each such equivalence class. Then S and S' are satisfied by precisely the same truth evaluations for the variables of S.

THEOREM [Compactness for Propositional Logic]
Let S be a set of propositional formulas. Then Sat(S) iff Sat(S0 ) for every finite .

Proof. First we can use Lemma 2 to assume, without loss of generality, that no two formulas in S are truth equivalent. The direction ( ) is clear, so let us prove ( ). Let S be a set of propositional formulas such that each finite subset of S is satisfiable.

Let be the propositional variables occurring in S; and let Sn be the set of formulas in S which mention only variables from . Then Sn has at most members (since different members have different truth tables). Thus if only finitely many variables occur in S it follows that S is finite, and therefore satisfiable. So now we assume infinitely many variables occur in S.

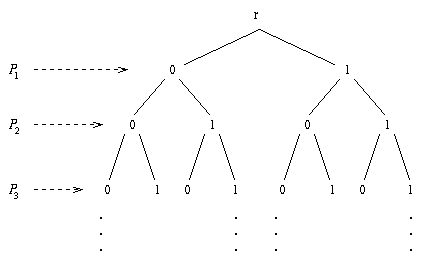

A truth evaluation is determined by an assignment of truth values to the propositional variables. Now think of such an assignment as a path through the following binary tree:

For example the assignment

will give the path

Let TS be the subtree of this binary tree given by taking all the finite paths in the tree such that the truth evaluation makes every formula in true. Then clearly TS is a binary tree, and since one can satisfy any , it must have arbitrarily long branches. Thus, by Lemma 1, the tree TS must have an infinite branch . But then the truth evaluation makes all the formulas in S true, i.e., S is satisfiable.
